Side Shift Backhoe Loaders

Details

Maximum Gross Power – SAE J1995: 2014
83.1 kW (113 hp) / 86.5 kW (118 hp)

Operating Weight - Nominal
18671 lb

Operating Weight - Maximum
24251 lb

Contact

Contact Foley Equipment and ask for Sales

+1 (316) 943-4211

Request a Quote

Overview

IT'S ABOUT YOU

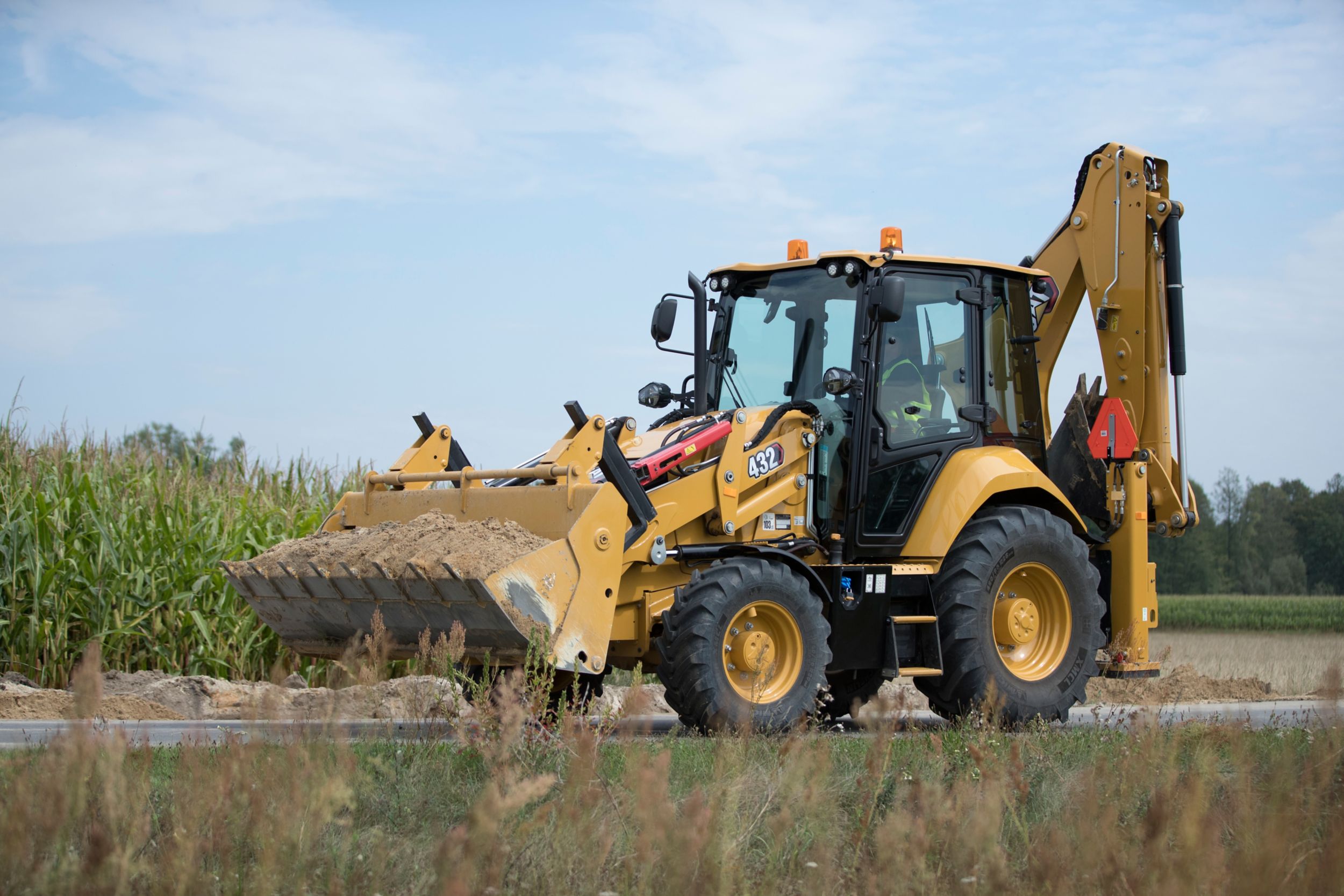

The Cat® 432 Backhoe Loader is built for different applications, economic profiles, affordability and machine utilization.

Benefits

More Performance

• Load Sensing Hydraulic System
• Variable Displacement Piston Pump

Up To 10% Less Fuel Consumption*

*Compared to F2 Series.

More Technology

• LCD Touch Screen^
• Powershift^
• Programmable Kickouts
• Return to Dig

^Optional.

Features at a Glance

C3.6 STAGE V ENGINE: The Cat® C3.6 engine meets EU Stage V emission standards while delivering up to a 10% fuel efficiency improvement compared to the previous model. The aftertreatment system is completely maintenance free with Selective Catalytic Reduction (SCR), Diesel Exhaust Fluid (DEF) and fit for life Diesel Particulate Filter (DPF) system.

OPTIMAL OPERATOR COMFORT AND CONTROL: Electro-Hydraulic (EH) Seat Mounted Controls offer the ultimate in comfort and control for operators. The loader or excavator can be operated from any seated position, even while sitting offset to help improve productivity and performance all in a safe and efficient manner. The Electro Hydraulic solution also offers operators the ability to speed up or slow down the hydraulics to match machine performance to either their preference or the job at hand.

INTERACTIVE DISPLAY SCREENS: The choice of either a soft key or touchscreen display screen gives the operator information at the touch of their fingertips. Many customizable features including hoe response rate and modulation are now offered. Machine Security Software is embedded into the display screen as well as notifications on service intervals.

POWERSHIFT TRANSMISSION: A 4-speed powershift transmission comes as standard on the 432. Improved operator comfort and reduced fatigue is achieved by operation through the directional control lever, rather than floor mounted lever, to shift gears. The 6-speed automatic shift transmission is available as an option, providing greater efficiency by ensuring that the correct gear is always selected. The Lock-up Torque Converter option is ideal for those who do a lot of roading as it can give up to 15% fuel efficiency savings on the road and maintain travel speed in hilly environments.

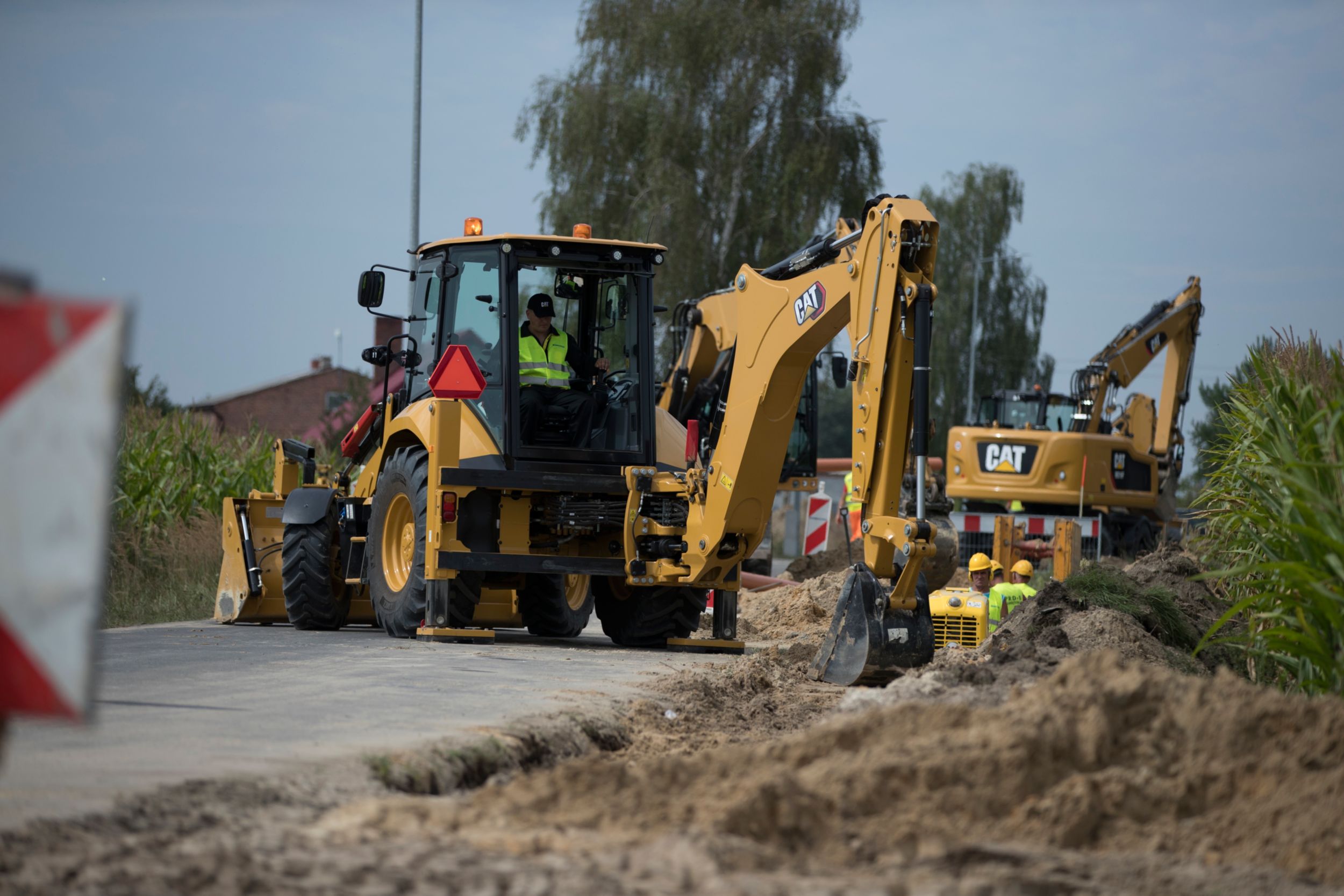

EXCAVATOR STYLE BOOM: Whether close-up truck loading or digging over obstacles, the iconic excavator-style boom tackles the toughest jobs with ease. Combine this versatility with powerful breakout forces, controllability, a powerful hydraulic system and the 432 is capable of high levels of productivity with minimum effort. The boom is a narrow design, ensuring maximum visibility to the attachment and ground. The hoe comes with the choice of either a 4.3 m or 4.9 m stick option.

POWERFUL AND EFFICIENT HYDRAULICS: The load sensing hydraulic system coupled with a variable displacement piston pump deliver powerful hydraulics when the operator really requires it.

POWER MANAGEMENT MODES: Three power management modes are available: Eco, Standard and Standard Plus. Depending upon application or performance needs, the operator can select the mode that gives optimum results. Eco mode limits both pump flow and engine speed giving higher fuel saving benefits whereas Standard Plus gives maximum pump flow and engine speed, providing increased power and performance where needed.

PRODUCT LINK™: Product Link™ comes as standard on the Cat backhoe loader. Many features exist through Product Link including fuel burn and location allowing the owner to access all data to help increase productivity.

Specifications

Full Specifications

Engine: Maximum Gross Power – SAE J1995: 2014
83.1 kW (113 hp) / 86.5 kW (118 hp)

Power
74.4 kW or 82 kW

Engine - EU Stage V (Standard): Torque Rise (net)
48% @ 1,500 rpm

Stroke
4.72 in

Note (1)
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.

Displacement
220 in³

Net Torque - SAE J1349
322 lbf

Bore
3.86 in

Engine
C3.6 74.4 kW Electronic Turbo Intercooled

Note (2)
No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems.

Emissions
Meets EU Stage V emission standards.

Ratings at 2,200 rpm - Gross Power SAE J1995:2014
83.1 kW/113 hp

Ratings at 2,200 rpm - Engine Power ISO 14396:2002
74 kW/101 hp

Net Power Rating @ 2,200 rpm - ISO 9249:2007
68 kW/92 hp

Net Power Rating @ 2,200 rpm - SAE J1349:2011
68 kW/92 hp

Engine - EU Stage V (Optional): Note (1)
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.

Torque Rise (net)
48% @ 1,500 rpm

Bore
3.86 in

Net Torque - SAE J1349
358 ft-lb

Stroke
4.72 in

Displacement
220 in³

Note (2)
No derating required up to 3048 m altitude. Auto derate protects hydraulic and transmission systems.

Engine
C3.6 82 kW Electronic Turbo Intercooled

Emissions
Meets EU Stage V emission standards.

Net Power Rating @ 2,200 rpm - SAE J1349:2011
76 kW/103 hp

Ratings at 2,200 rpm - Gross Power SAE J1995:2014
86.5 kW/118 hp

Net Power Rating @ 2,200 rpm - ISO 9249:2007
75 kW/102 hp

Note (3)
Advertised power is tested per the specified standard in effect at the time of manufacture.

Engine - EU Stage V (Optional) - A: Ratings at 2,200 rpm - Engine Power ISO 14396:2002
82 kW/111 hp

Transmission: Note
Travel speeds of backhoe loader at full throttle, when equipped with 480/80-26 rear tires.

Transmission - Powershift Transmission (Standard): Reverse - 1st
3.7 mile/h

Forward - 1st
3.7 mile/h

Forward - 2nd
6.2 mile/h

Reverse - 2nd
8.1 mile/h

Forward - 4th
24.9 mile/h

Reverse - 3rd
17 mile/h

Forward - 3rd
12.4 mile/h

Transmission - Auto-Shift Transmission (Optional): Forward - 6th
24.9 mile/h

Reverse - 1st
3.7 mile/h

Forward - 1st
3.7 mile/h

Forward - 5th
16.8 mile/h

Forward - 2nd
6.2 mile/h

Forward - 3rd
8.1 mile/h

Reverse - 3rd
17 mile/h

Forward - 4th
12.4 mile/h

Reverse - 2nd
8.1 mile/h

Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional): Forward - 1st
3.7 mile/h

Reverse - 3rd
17 mile/h

Reverse - 2nd
8.1 mile/h

Forward - 5th
16.8 mile/h

Forward - 2nd
6.2 mile/h

Forward - 4th
12.4 mile/h

Forward - 6th
24.9 mile/h

Reverse - 1st
3.7 mile/h

Forward - 3rd
8.1 mile/h

Axle Ratings: Rear Axle - Dynamic
22046 lb

Rear Axle - Static
58423 lb

Front Axle - Dynamic
19842 lb

Front Axle - Static
51809 lb

Weights: Operating Weight - Nominal
18671 lb

Operating Weight - Maximum
24251 lb

Operating Weight
18671 lb

Counterweights - Maximum
1014 lb

Operating Weight - Maximum - ROPS Capacity
24251 lb

Ride Control
33 lb

Counterweights - Base
254 lb

Air Conditioning
99 lb

MP Bucket (1.03 m³/1.3 yd³) - without Fold-over Forks
1486 lb

Total Gross Weight Not to Exceed
24251 lb

Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - No QC - MP
0 lb

Power-Shift Transmission
Standard

Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - IT Loader with QC - MP
1014 lb

Cab - ROPS/FOPS
Standard

Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - IT Loader with QC - GP
1014 lb

MP Bucket (1.03 m³/1.3 yd³) - with Fold-over Forks
1896 lb

Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - IT Loader with QC - MP
1014 lb

Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - No QC - GP
1014 lb

Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - No QC - GP
529 lb

Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - No QC - MP
254 lb

Note
Machine Configuration – HRC 74.5 kW engine; 4.3 m standard stick hoe; standard cab with A/C; AWD powershift transmission; 1.03 m³ MP loader bucket; 600 mm standard duty hoe bucket; 340/80-20 and 480/80-26 tires; no counterweight; One Way Aux Lines; AWD Guard; Front Fenders; HD Battery; 80 kg operator; full fuel tank.

Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - IT Loader with QC - GP
1014 lb

Counterweights - Mid
529 lb

Loader QC
408 lb

4.3 m Extendible Stick
439 lb

4.9 m Extendible Stick
783 lb

Hydraulic System: System Pressure - Backhoe
3626 psi

System Pressure - Loader
3626 psi

Pump Capacity @ 2,200 rpm
49.4 gpm

Type
Closed Center

Pump Type
Variable-Flow, Axial Piston

Steering: AWD Cylinder, One (1) Double Acting - Rod Diameter
1.6 in

Power Steering
Hydrostatic

AWD Cylinder, One (1) Double Acting - Stroke
4.2 in

AWD Cylinder, One (1) Double Acting - Bore
2.6 in

Type
Front Wheel

Turning Circle - AWD (inner wheel not braked) - Outside, Widest Loading Bucket
38.1 ft

Turning Circle - AWD (inner wheel not braked) - Outside, Front Wheels
30.4 ft

Service Refill Capacities: Cooling System - A/C
4.8 gal (US)

Rear Axle
4.2 gal (US)

Engine Oil - With Filter
2.4 gal (US)

Hydraulic Tank
11.1 gal (US)

Rear Axle - Planetaries
0.4 gal (US)

Fuel Tank
42.3 gal (US)

Diesel Exhaust Fluid
5 gal (US)

Hydraulic System
25.1 gal (US)

Front Axle - Planetaries
0.02 gal (US)

Front Axle
2.9 gal (US)

Service Refills Capacities: Transmission (Powershift/Autoshift)
4.18 Gal

Loader Performance: Breakout Force
12297 ft·lbf

Operator Station: Controls
Seat Mounted Controls with Dual Mode

Backhoe Digging Depth: Dig Depth
4778 mm/6150 mm (E-Stick)

Equipment

Standard Equipment

Cab ROPS and FOPS

Cab, Standard

Tires/Steering/Brakes

All Wheel Drive
100% Differential Lock
Hydraulic Boosted Brakes
Tires 26 inch

Engine/Transmission

Engine, C3.6 74.4 kW
Battery, 750 CCA, Standard
Hinged Radiator Pack
Auto Idle
Eco Mode
Standard Mode
Standard + Mode
Transmission Neutralizer
Transmission, Four Speed Powershift

Controls

Controls, Electro Hydraulic Seat Mounted
Pattern Selector (ISO/SAE)
Power Steering, Hydrostatic

Electrical

Display Screen, Soft Key
Product Link Cellular
Reversing Alarm
Stabilizer Alarm

Hydraulics

Variable Displacement Piston Pump
Side Shift Lock
Hydraulic Oil Cooler
Loader Kickout, Float
Loader Kickout, Return to Dig
Continuous Flow
Programmable Auxiliary Flow

Booms, Sticks and Linkages

Stick Standard, 4.3 m
Transport Lock, Swing
Transport Lock, Boom

Other Attachments

External Tool Box
Transport Tie Downs
